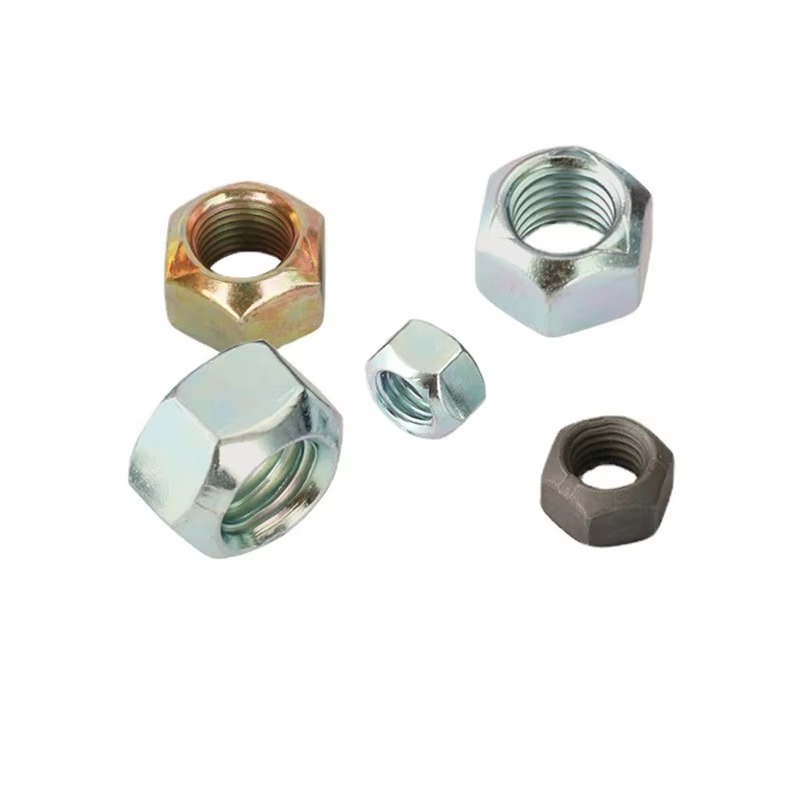

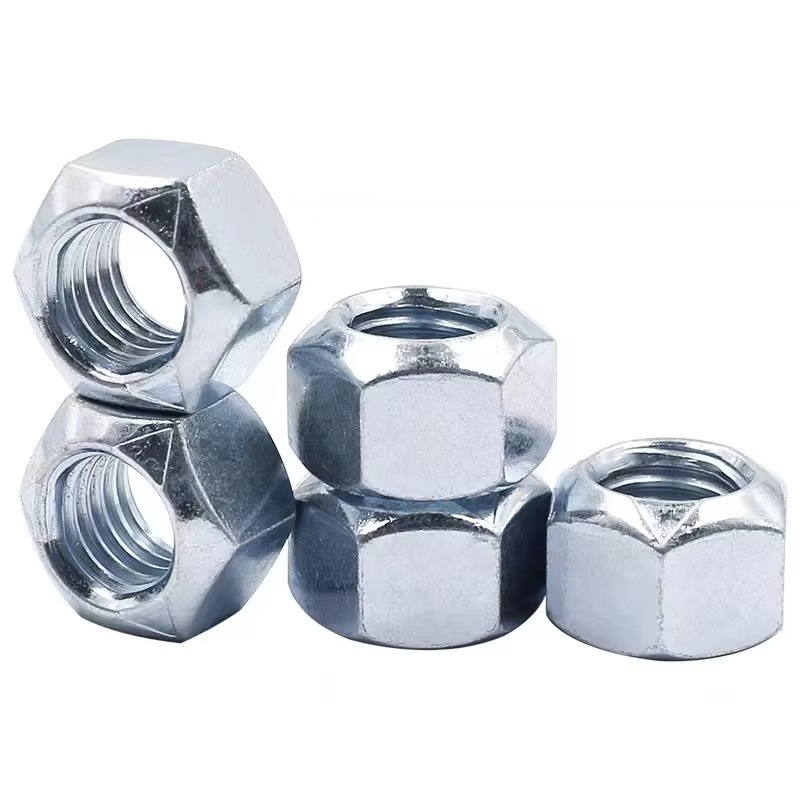

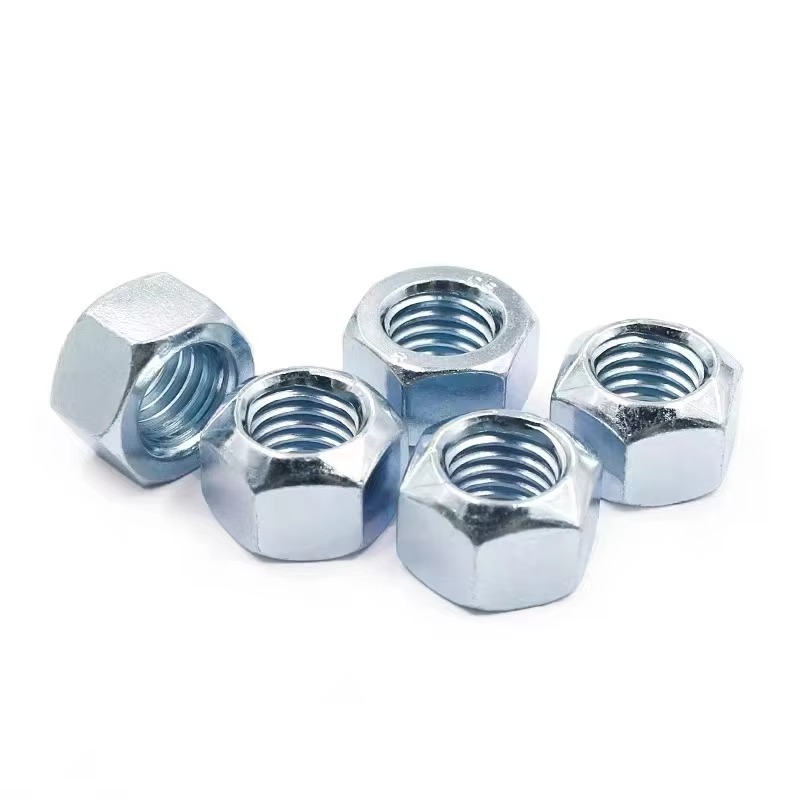

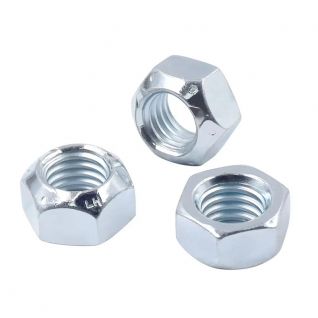

DIN 980V Prevailing Torque Hex Lock Nuts are one-piece hex nuts with internal machine screw threads, a conical top and flat bottom bearing surface. Prevailing torque, which requires the nuts to be wrenched when installing and removing, is caused by deformation of their top threads. That feature allows them to resist dynamic forces like shock and vibration but is also responsible for possible thread galling. They are considered one-way nuts because the flat bottom is threaded onto the mating part first. Since they are all-metal they are not subject to the chemical and temperature limitations of non-metallic inserts, like nylon (polyamide), but can only be reused a limited number of times due to a decline in prevailing torque (permissible temperature range is -58 to +440°F). Available in Class 8 and 10 steel; coarse, fine and extra fine threads
| Standard: | DIN980V |
| Shape: | Hex with a conical top |
| Material: | Stainless Steel or Carbon Steel |
| Grade: | Class8/10 |
| Surface: | Plain,Black,Zinc Plated,Yellow Zinc Palted,Geomet,Dacromet |
| Packing: | 25kg caron or small box or bag or as your request |
| Thread: | coarse, fine and extra fine threads |
| Stoick: | most size in stoick , can be in small order |
